Hey there! As a supplier of CNC Turning Parts, I've been in the trenches of the manufacturing world for quite some time. One of the most common headaches we face in CNC turning is getting the chip breaking performance just right. Poor chip breaking can lead to a whole bunch of issues, like tool wear, surface finish problems, and even machine damage. So, in this blog, I'm gonna share some tips on how to improve the chip breaking performance during CNC turning of parts.
Understanding the Basics of Chip Formation
Before we dive into the solutions, let's quickly go over how chips are formed during CNC turning. When the cutting tool removes material from the workpiece, it creates a continuous or segmented chip. The type of chip formed depends on several factors, including the material being cut, the cutting parameters, and the tool geometry.
Continuous chips are long and unbroken, which can be a real pain in the neck. They tend to wrap around the tool and the workpiece, causing problems with chip evacuation and potentially damaging the surface finish. Segmented chips, on the other hand, are broken into smaller pieces, which are much easier to manage.
Choosing the Right Cutting Tool
One of the most important factors in achieving good chip breaking is choosing the right cutting tool. The tool geometry plays a crucial role in determining the type of chip that will be formed. Here are some key considerations when selecting a cutting tool:
- Rake Angle: The rake angle is the angle between the cutting edge of the tool and the workpiece surface. A positive rake angle tends to produce continuous chips, while a negative rake angle can help break the chips into smaller pieces. However, a negative rake angle also increases the cutting force, so it's important to find the right balance.
- Chip Breaker: Many modern cutting tools come with built-in chip breakers. These are small grooves or protrusions on the tool face that help to break the chips into smaller pieces. When selecting a tool, look for one with a chip breaker that is designed for the specific material and cutting conditions you'll be working with.
- Tool Material: The material of the cutting tool also affects chip breaking performance. Carbide tools are a popular choice for CNC turning because they are hard and wear-resistant. They also tend to produce better chip breaking than high-speed steel tools.
Optimizing Cutting Parameters
In addition to choosing the right cutting tool, optimizing the cutting parameters is essential for improving chip breaking performance. Here are some key parameters to consider:
- Cutting Speed: The cutting speed is the speed at which the cutting tool moves relative to the workpiece. Increasing the cutting speed can help to break the chips into smaller pieces, but it also increases the cutting temperature and tool wear. It's important to find the optimal cutting speed for the material and tool you're using.
- Feed Rate: The feed rate is the distance the tool moves along the workpiece per revolution. A higher feed rate can help to break the chips, but it also increases the cutting force and can potentially damage the surface finish. Again, it's important to find the right balance.
- Depth of Cut: The depth of cut is the thickness of the material that is removed in each pass. A larger depth of cut can help to break the chips, but it also increases the cutting force and tool wear. It's important to choose a depth of cut that is appropriate for the material and tool you're using.
Using Coolant
Using coolant is another effective way to improve chip breaking performance. Coolant helps to reduce the cutting temperature, lubricate the cutting tool, and flush away the chips. Here are some tips for using coolant effectively:
- Choose the Right Coolant: There are several types of coolant available, including water-based, oil-based, and synthetic coolants. The type of coolant you choose will depend on the material you're cutting, the cutting conditions, and your personal preferences.
- Apply the Coolant Properly: It's important to apply the coolant directly to the cutting zone to ensure that it reaches the chips and the cutting tool. You can use a coolant nozzle or a flood coolant system to apply the coolant.
- Maintain the Coolant: Coolant needs to be maintained properly to ensure its effectiveness. This includes monitoring the coolant concentration, pH level, and temperature, and changing the coolant regularly.
Adjusting the Machine Setup
Finally, adjusting the machine setup can also help to improve chip breaking performance. Here are some things to consider:
- Workpiece Clamping: Make sure the workpiece is securely clamped to the machine to prevent it from moving during the cutting process. This can help to ensure a consistent cutting force and improve chip breaking performance.
- Tool Holder Rigidity: The tool holder should be rigid and stable to prevent vibration and chatter. Vibration can cause the chips to form into long, continuous strands, making them difficult to break.
- Chip Evacuation System: A good chip evacuation system is essential for removing the chips from the cutting zone. Make sure the chip conveyor or chip auger is working properly and that the chips are being removed from the machine quickly.
Conclusion
Improving chip breaking performance during CNC turning is essential for achieving good surface finish, reducing tool wear, and increasing productivity. By choosing the right cutting tool, optimizing the cutting parameters, using coolant effectively, and adjusting the machine setup, you can significantly improve the chip breaking performance of your CNC turning operations.

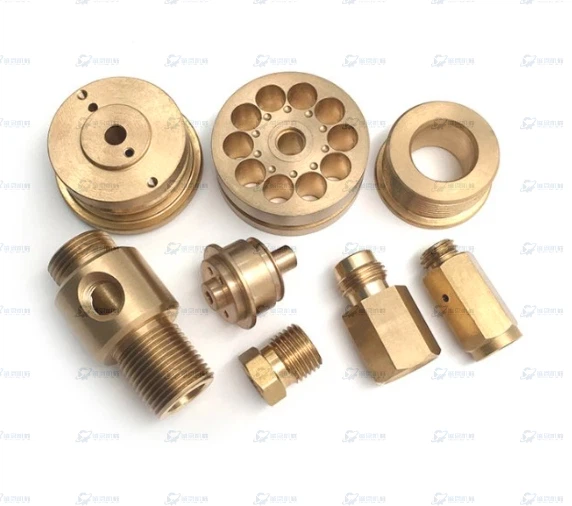

If you're looking for high-quality CNC Turning Parts, we've got you covered. Check out our CNC Lathe Machine Surface Finish Parts, Precision Wire Cutting Parts, and CNC Turned Brass Components. We're always happy to discuss your specific requirements and help you find the best solution for your needs. So, don't hesitate to reach out and start a conversation about your next project!
